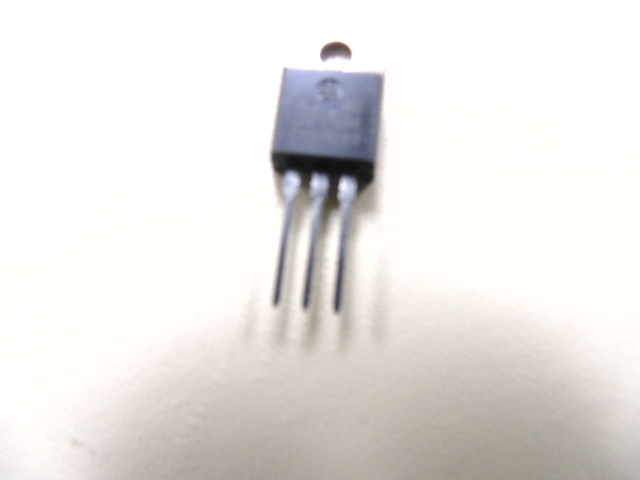

Part Number: IRFZ46N

IRFZ46N
Internal ID
85175
Quantity in Stock:
143
Manufacturer:
IR
Description:
N-Channel Enhancement MOSFET DIP
Category:

Price Per Quantity

143 in stock

1 - 24 $4.28
25 - 99 $4.24
100 - 499 $4.19
500 - 999 $4.17
999 + $4.15





































@I(D) (A) (Test Condition):26
@Temp (øC) (Test Condition):25õ
g(fs) Min. (S) Trans. conduct.:17
@I(D) (A) (Test Condition):26
@V(DS) (V) (Test Condition):25
@Temp (øC):100#
Mounting Style:T
I(D) Max. (A):43#
Package Style:TO-220AB
Military/High-Rel:N
I(DSS) Max. (A):25u
r(DS)on Max. (Ohms):22m
t(d)off Max. (s) Off time:47nÂ
I(DM) Max. (A) Pulsed I(D):30
V(GS)th (V) (Min):2.0
@(VDS) (V) (Test Condition):20
@I(D) (A) (Test Condition):250u
@Freq. (Hz) (Test Condition):1.0M
@V(DS) (V) (Test Condition):55
t(r) Max. (s) Rise time:69nÂ
C(iss) Max. (F):1.4n
@V(DS) (V) (Test Condition):25
t(f) Max. (s) Fall time.:60nÂ
V(GS)th Max. (V):4.0
IDM Max (@25øC Amb):170#
@V(GS) (V) (Test Condition):20
I(GSS) Max. (A):100n
Thermal Resistance Junc-Amb.:62
Absolute Max. Power Diss. (W):83#
V(BR)GSS (V):20
V(BR)DSS (V):55
@V(GS) (V) (Test Condition):10
@V(GS) (V) (Test Condition):0.0
td(on) Max (s) On time delay:7.3nÂ
Thermal Resistance Junc-Case:1.8
Maximum Operating Temp (øC):175õ
Minimum Operating Temp (øC):-55õ
