| Military/High-Rel: | N |
| V(BR)DSS (V): | 100 |
| V(BR)GSS (V): | 20 |
| I(D) Max. (A): | 5.6# |
| I(DM) Max. (A) Pulsed I(D): | 4.0 |
| @Temp (øC): | 100 |
| IDM Max (@25øC Amb): | 20# |
| Absolute Max. Power Diss. (W): | 43# |
| Minimum Operating Temp (øC): | -55õ |
| Maximum Operating Temp (øC): | 150õ |
| Thermal Resistance Junc-Case: | 3.5 |
| Thermal Resistance Junc-Amb.: | 80 |
| V(GS)th Max. (V): | 4 |
| V(GS)th (V) (Min): | 2 |
| @I(D) (A) (Test Condition): | 250u |
| I(DSS) Max. (A): | 250u |
| @V(DS) (V) (Test Condition): | 100 |
| @Temp (øC) (Test Condition): | 25 |
| I(GSS) Max. (A): | 500n |
| @V(GS) (V) (Test Condition): | 20 |
| r(DS)on Max. (Ohms): | 540m |
| @V(GS) (V) (Test Condition): | 10 |
| @I(D) (A) (Test Condition): | 3.4 |
| g(fs) Min. (S) Trans. conduct.: | 1.3 |
| g(fs) Max; (S) Trans. conduct;: | 2.0Â |
| @V(DS) (V) (Test Condition): | 50 |
| @I(D) (A) (Test Condition): | 3.4 |
| C(iss) Max. (F): | 135p |
| @V(DS) (V) (Test Condition): | 25 |
| @Freq. (Hz) (Test Condition): | 1M |
| td(on) Max (s) On time delay: | 11n |
| t(r) Max. (s) Rise time: | 36n |
| t(d)off Max. (s) Off time: | 21n |
| t(f) Max. (s) Fall time.: | 21n |

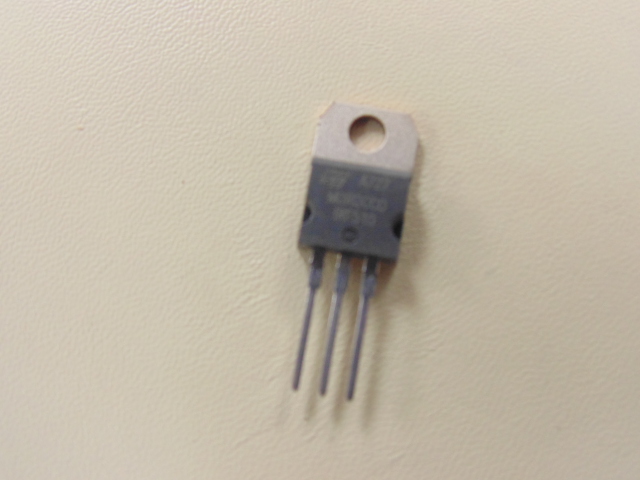

| Package Style: | TO-220AB |
| Mounting Style: | T |
| ICES | × |
