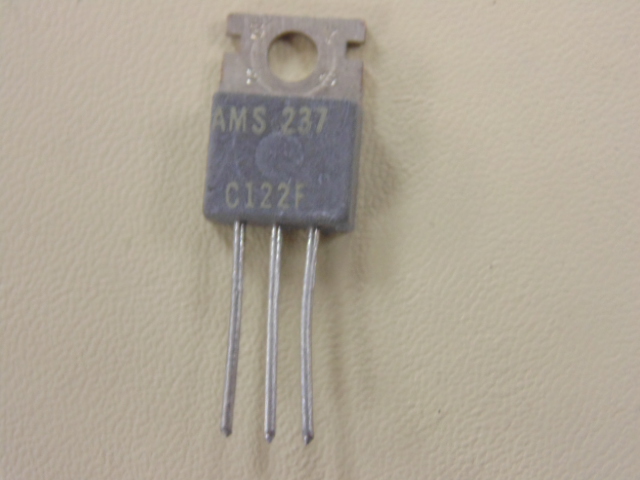

C122F

Internal ID
70413
Quantity in Stock:
8012
Manufacturer:
GE
Description:
Silicon Controlled Rectifier. Reverse Blocking Triode Thyristor. 8 A RMS. Repetitive Peak Off-state Voltage And Repetitive Peak Reverse Voltage 50 V. SCR TO-220 10AMP/50PIV
Category:

Price Per Quantity

8012 in stock

1 - 24 $5.50
25 - 99 $5.45
100 - 499 $5.39
500 - 999 $5.36
999 + $5.34
Military/High-Rel:N
V(DRM) Max. (V):50
I(T) Rated Maximum (A):8.0²
@Temp. (øC) (Test Condition):75#
I(TSM) Max. (A):90
I(GT) Max. (A):25m
V(GT) Max.(V):1.5
I(H) Max. (A) Holding Current:30m
I(D) Max. (A) Leakage Current:500u
@Temp. (øC) (Test Condition):100#
V(T) Max. (V):1.8
@I(T) (A) (Test Condition):16
dv/dt Min. (V/us):50Â
t(q) Typ. (s):50u
Minimum Operating Temp (øC):-40
Maximum Operating Temp (øC):100õ
Package Style:TO-220
Mounting Style:T
t(q): Turn-off Time¿
