| Military/High-Rel: | N |
| V(BR)DSS (V): | 150 |
| V(BR)GSS (V): | 20 |
| I(D) Max. (A): | 3.0 |
| IDM Max (@25øC Amb): | 12 |
| Absolute Max. Power Diss. (W): | 20# |
| Maximum Operating Temp (øC): | 150õ |
| Thermal Resistance Junc-Case: | 6.3 |
| Thermal Resistance Junc-Amb.: | 62.5 |
| V(GS)th Max. (V): | 2.5 |
| V(GS)th (V) (Min): | 1.0 |
| @(VDS) (V) (Test Condition): | 20 |
| @I(D) (A) (Test Condition): | 1.0m |
| I(DSS) Max. (A): | 500u |
| @V(DS) (V) (Test Condition): | 150 |
| @Temp (øC) (Test Condition): | 25 |
| I(GSS) Max. (A): | 100n |
| @V(GS) (V) (Test Condition): | 20 |
| r(DS)on Max. (Ohms): | 1.2 |
| @V(GS) (V) (Test Condition): | 4.0 |
| @I(D) (A) (Test Condition): | 1.5 |
| g(fs) Min. (S) Trans. conduct.: | 1.5 |
| g(fs) Max; (S) Trans. conduct;: | 3.0Â |
| @V(DS) (V) (Test Condition): | 25 |
| @I(D) (A) (Test Condition): | 1.5 |
| C(iss) Max. (F): | 530p |
| @V(DS) (V) (Test Condition): | 25 |
| @V(GS) (V) (Test Condition): | 0.0 |
| @Freq. (Hz) (Test Condition): | 1.0M |
| td(on) Max (s) On time delay: | 5.0n |
| t(r) Max. (s) Rise time: | 45n |
| t(d)off Max. (s) Off time: | 90n |
| t(f) Max. (s) Fall time.: | 30n |

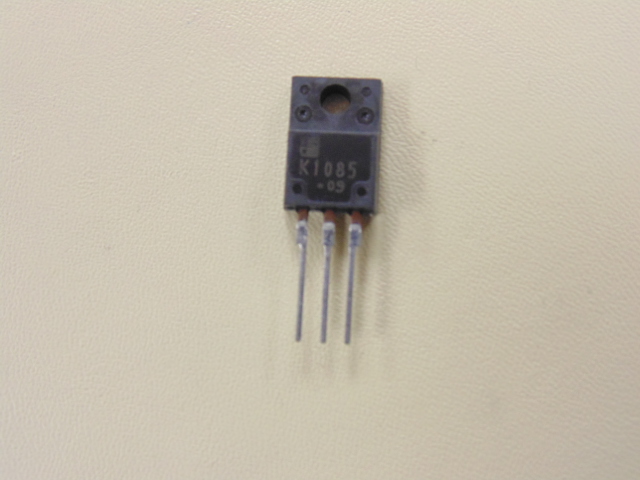

| Package Style: | TO-220AB |
| Mounting Style: | T |
| Many Values Available | ï |
