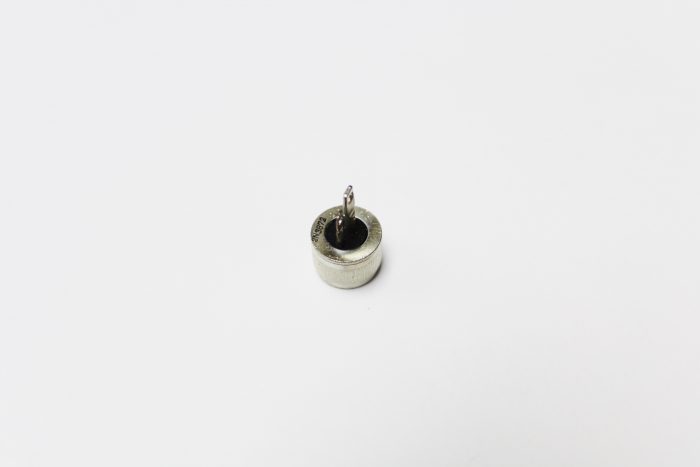

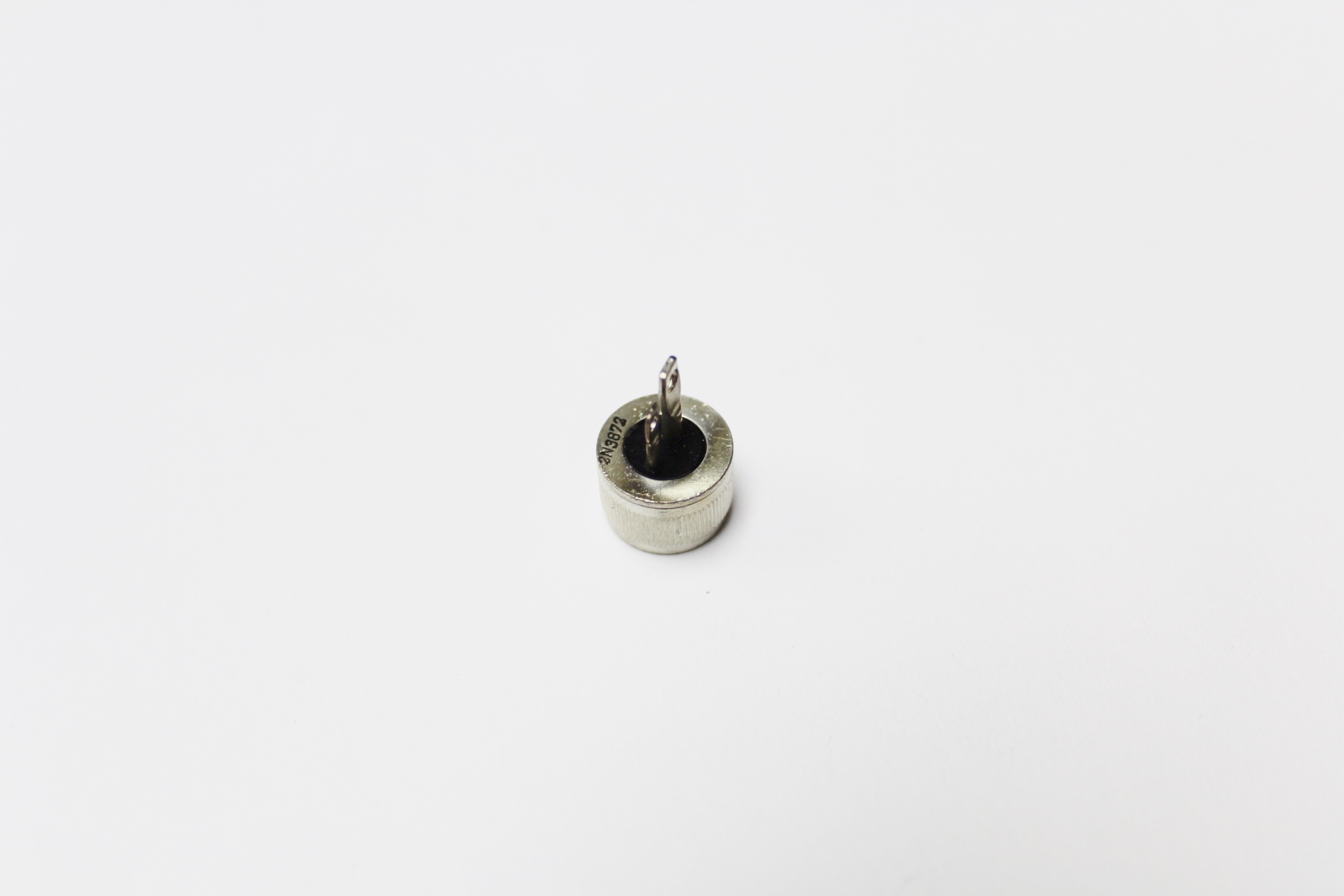

Part Number: 2N3872

Internal ID
50827
Quantity in Stock:
591
Manufacturer:
AMS
Description:
Silicon Controlled Rectifier. Revers Blocking Triode Thyristor. Peak Repetitive Forward Or Reverse Blocking Voltage 400 V. SCR
Category:

Price Per Quantity

5 in stock

1 - 24 $96.21
25 - 99 $95.25
100 - 499 $94.29
500 - 999 $93.80
999 + $93.32
Military/High-Rel:N
V(DRM) Max. (V):400
I(T) Rated Maximum (A):11±
@Temp. (øC) (Test Condition):85#
I(TSM) Max. (A):350¥
@ t(w) (s) (Test Condition):8.0m
I(GT) Max. (A):80m
V(GT) Max.(V):3.0
I(D) Max. (A) Leakage Current:3.0m
@Temp. (øC) (Test Condition):100#
V(T) Max. (V):1.8
@I(T) (A) (Test Condition):69
dv/dt Min. (V/us):50Â¥
t(q) Typ. (s):40u
Minimum Operating Temp (øC):-40
Maximum Operating Temp (øC):100õ
Package Style:TO-203AA
Mounting Style:T
Current Rise Timeç
