American Microsemiconductor
Asdfasd

Price: $2.75

Quantity: 0

  • Out of stock

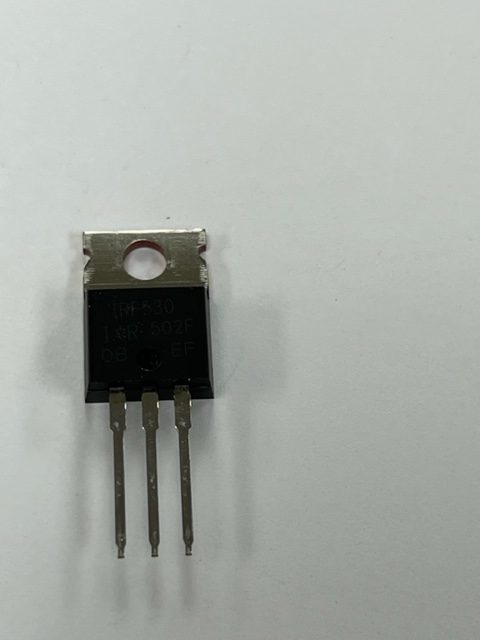

    IRF530

    $2.75
    Quantity: 0





































    @I(D) (A) (Test Condition):8.3
    @Temp (øC) (Test Condition):25
    g(fs) Min. (S) Trans. conduct.:5.1
    @I(D) (A) (Test Condition):8.3
    @V(DS) (V) (Test Condition):25
    @Temp (øC):100
    Mounting Style:T
    I(D) Max. (A):14#
    Package Style:TO-220AB
    Military/High-Rel:N
    I(DSS) Max. (A):250u
    r(DS)on Max. (Ohms):180m
    t(d)off Max. (s) Off time:35n
    I(DM) Max. (A) Pulsed I(D):10
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    @Freq. (Hz) (Test Condition):1M
    g(fs) Max; (S) Trans. conduct;:7.6Â
    @V(DS) (V) (Test Condition):100
    t(r) Max. (s) Rise time:51n
    C(iss) Max. (F):600pÂ
    @V(DS) (V) (Test Condition):50
    t(f) Max. (s) Fall time.:36n
    V(GS)th Max. (V):4
    IDM Max (@25øC Amb):56#
    @V(GS) (V) (Test Condition):20
    I(GSS) Max. (A):500n
    I(GSS) Max. (A):á
    Thermal Resistance Junc-Amb.:80
    Absolute Max. Power Diss. (W):79#
    V(BR)GSS (V):20
    V(BR)DSS (V):100
    @V(GS) (V) (Test Condition):10
    td(on) Max (s) On time delay:15n
    Thermal Resistance Junc-Case:1.9
    Maximum Operating Temp (øC):150õ
    Minimum Operating Temp (øC):-55õ
    Details
  • Placeholder

    IRF531

    $2.77
    Quantity: 28
    Military/High-Rel:N
    V(BR)DSS (V):80
    V(BR)GSS (V):20
    I(D) Max. (A):14#
    I(DM) Max. (A) Pulsed I(D):10
    @Temp (øC):100
    IDM Max (@25øC Amb):56#
    Absolute Max. Power Diss. (W):79#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:1.9
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):100
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):180m
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):8.3
    g(fs) Min. (S) Trans. conduct.:5.1
    g(fs) Max; (S) Trans. conduct;:7.6Â
    @V(DS) (V) (Test Condition):50
    @I(D) (A) (Test Condition):8.3
    C(iss) Max. (F):600pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:15n
    t(r) Max. (s) Rise time:51n
    t(d)off Max. (s) Off time:35n
    t(f) Max. (s) Fall time.:36n
    Package Style:TO-220AB
    Mounting Style:T
    
    Add to cart Details

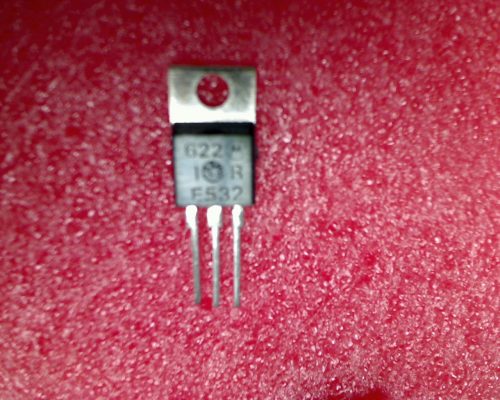

  • IRF532

    $2.98
    Quantity: 900























    @I(D) (A) (Test Condition):8.3
    @Temp (øC) (Test Condition):25
    g(fs) Min. (S) Trans. conduct.:5.1
    @I(D) (A) (Test Condition):8.3
    @V(DS) (V) (Test Condition):25
    @Temp (øC):100
    I(DSS) Max. (A):250u
    t(d)off Max. (s) Off time:35n
    I(DM) Max. (A) Pulsed I(D):8.3
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    @Freq. (Hz) (Test Condition):1M
    g(fs) Max; (S) Trans. conduct;:7.6Â
    @V(DS) (V) (Test Condition):100
    @V(DS) (V) (Test Condition):50
    V(GS)th Max. (V):4
    IDM Max (@25øC Amb):48#
    @V(GS) (V) (Test Condition):20
    Thermal Resistance Junc-Amb.:80
    @V(GS) (V) (Test Condition):10
    td(on) Max (s) On time delay:15n
    Thermal Resistance Junc-Case:1.9
    Minimum Operating Temp (øC):-55õ
    Add to cart Details
  • Placeholder

    IRF540

    $7.44
    Quantity: 217
    Military/High-Rel:N
    V(BR)DSS (V):100
    V(BR)GSS (V):20
    I(D) Max. (A):28#
    I(DM) Max. (A) Pulsed I(D):20
    @Temp (øC):100
    IDM Max (@25øC Amb):110#
    Absolute Max. Power Diss. (W):150#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:1
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):100
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):77m
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):17
    g(fs) Min. (S) Trans. conduct.:8.7
    g(fs) Max; (S) Trans. conduct;:13Â
    @V(DS) (V) (Test Condition):50
    @I(D) (A) (Test Condition):17
    C(iss) Max. (F):1.45nÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:23n
    t(r) Max. (s) Rise time:110n
    t(d)off Max. (s) Off time:60n
    t(f) Max. (s) Fall time.:75n
    Package Style:TO-220AB
    Mounting Style:T
    Not at Breakdown VoltageÉ
    Add to cart Details

  • IRF610

    $1.06
    Quantity: 143
    Military/High-Rel:N
    V(BR)DSS (V):200
    V(BR)GSS (V):20
    I(D) Max. (A):3.3#
    I(DM) Max. (A) Pulsed I(D):2.1
    @Temp (øC):100
    IDM Max (@25øC Amb):8#
    Absolute Max. Power Diss. (W):43#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:2.9
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):200
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):1.5
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):1.6
    g(fs) Min. (S) Trans. conduct.:0.8
    g(fs) Max; (S) Trans. conduct;:1.3Â
    @V(DS) (V) (Test Condition):50
    @I(D) (A) (Test Condition):1.6
    C(iss) Max. (F):135pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:12n
    t(r) Max. (s) Rise time:26n
    t(d)off Max. (s) Off time:21n
    t(f) Max. (s) Fall time.:13n
    Package Style:TO-220AB
    Mounting Style:T
    Optical Rise Timeú
    Add to cart Details

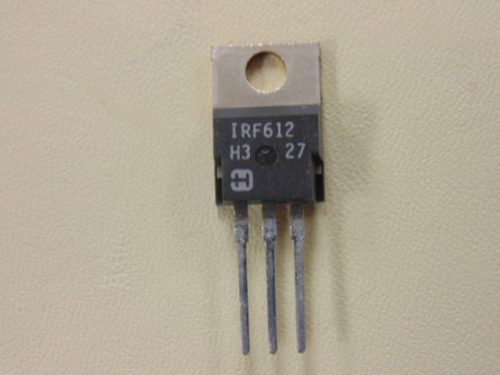

  • IRF612

    $1.65
    Quantity: 1989
    Military/High-Rel:N
    V(BR)DSS (V):200
    V(BR)GSS (V):20
    I(D) Max. (A):2.6#
    I(DM) Max. (A) Pulsed I(D):1.6
    @Temp (øC):100
    IDM Max (@25øC Amb):6.5#
    Absolute Max. Power Diss. (W):43#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:2.9
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):200
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):2.4
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):1.6
    g(fs) Min. (S) Trans. conduct.:0.8
    g(fs) Max; (S) Trans. conduct;:1.3Â
    @V(DS) (V) (Test Condition):50
    @I(D) (A) (Test Condition):1.6
    C(iss) Max. (F):135pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:12n
    t(r) Max. (s) Rise time:26n
    t(d)off Max. (s) Off time:21n
    t(f) Max. (s) Fall time.:13n
    Package Style:TO-220AB
    Mounting Style:T
    Many Values Availableï
    Add to cart Details
  • Placeholder

    IRF614

    $0.88
    Quantity: 1
    Military/High-Rel:N
    V(BR)DSS (V):250
    I(D) Max. (A):2.7
    I(DM) Max. (A) Pulsed I(D):1.7
    @Temp (øC):100õ
    IDM Max (@25øC Amb):8.0
    Absolute Max. Power Diss. (W):36
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:3.5
    Thermal Resistance Junc-Amb.:62
    V(GS)th Max. (V):4.0
    V(GS)th (V) (Min):2.0
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):200
    @Temp (øC) (Test Condition):125õ
    I(GSS) Max. (A):100n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):2.0
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):1.6
    g(fs) Min. (S) Trans. conduct.:.9
    @V(DS) (V) (Test Condition):100
    @I(D) (A) (Test Condition):1.6
    C(iss) Max. (F):140pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:7.0nÂ
    t(r) Max. (s) Rise time:7.6nÂ
    t(d)off Max. (s) Off time:16nÂ
    t(f) Max. (s) Fall time.:7.0nÂ
    Package Style:TO-220AB
    Mounting Style:T
    Junction Temperatureó
    Add to cart Details
  • Placeholder

    IRF620

    $4.69
    Quantity: 23
    Military/High-Rel:N
    V(BR)DSS (V):200
    V(BR)GSS (V):20
    I(D) Max. (A):5.0#
    I(DM) Max. (A) Pulsed I(D):3.0
    @Temp (øC):100
    IDM Max (@25øC Amb):20#
    Absolute Max. Power Diss. (W):40#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:3.12
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):200
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):800m
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):2.5
    g(fs) Min. (S) Trans. conduct.:1.3
    g(fs) Max; (S) Trans. conduct;:2.5Â
    @I(D) (A) (Test Condition):2.5
    C(iss) Max. (F):450pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:40n
    t(r) Max. (s) Rise time:60n
    t(d)off Max. (s) Off time:100n
    t(f) Max. (s) Fall time.:60n
    Package Style:TO-220AB
    Mounting Style:T
    ­
    Add to cart Details
  • Placeholder

    IRF630

    $13.69
    Quantity: 53
    Military/High-Rel:N
    V(BR)DSS (V):200
    V(BR)GSS (V):20
    I(D) Max. (A):9.0#
    I(DM) Max. (A) Pulsed I(D):6.0
    @Temp (øC):100
    IDM Max (@25øC Amb):36#
    Absolute Max. Power Diss. (W):75#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:1.67
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):200
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):400m
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):5
    g(fs) Min. (S) Trans. conduct.:3.0
    g(fs) Max; (S) Trans. conduct;:4.8Â
    @I(D) (A) (Test Condition):5.0
    C(iss) Max. (F):600pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:30n
    t(r) Max. (s) Rise time:50n
    t(d)off Max. (s) Off time:50n
    t(f) Max. (s) Fall time.:40n
    Package Style:TO-220AB
    Mounting Style:T
    Pulsed Measurementæ
    Add to cart Details
  • Placeholder

    IRF633

    $3.25
    Quantity: 6
    Military/High-Rel:N
    V(BR)DSS (V):150
    V(BR)GSS (V):20
    I(D) Max. (A):8.0#
    I(DM) Max. (A) Pulsed I(D):5.0#
    @Temp (øC):100
    IDM Max (@25øC Amb):32#
    Absolute Max. Power Diss. (W):75#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:1.67
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):150
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):600m
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):5.0
    g(fs) Min. (S) Trans. conduct.:3.0
    g(fs) Max; (S) Trans. conduct;:4.8Â
    @I(D) (A) (Test Condition):5.0
    C(iss) Max. (F):600pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:30n
    t(r) Max. (s) Rise time:50n
    t(d)off Max. (s) Off time:50n
    t(f) Max. (s) Fall time.:40n
    Package Style:TO-220AB
    Mounting Style:T
    f(ab)¦
    Add to cart Details
  • Out of stock
    Placeholder

    IRF634

    $0.63
    Quantity: 0
    Military/High-Rel:N
    V(BR)DSS (V):250
    V(BR)GSS (V):20
    I(D) Max. (A):8.1#
    I(DM) Max. (A) Pulsed I(D):5.1
    @Temp (øC):100#
    IDM Max (@25øC Amb):32#
    Absolute Max. Power Diss. (W):74#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:1.7
    Thermal Resistance Junc-Amb.:62
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):200
    @Temp (øC) (Test Condition):125õ
    I(GSS) Max. (A):100n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):450m
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):5.1
    g(fs) Min. (S) Trans. conduct.:1.6
    @V(DS) (V) (Test Condition):50
    @I(D) (A) (Test Condition):5.1
    C(iss) Max. (F):770pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:9.6nÂ
    t(r) Max. (s) Rise time:21nÂ
    t(d)off Max. (s) Off time:42nÂ
    t(f) Max. (s) Fall time.:19nÂ
    Package Style:TO-220AB
    Mounting Style:T
    Junction Temperatureô
    Details
  • Placeholder

    IRF644

    $7.25
    Quantity: 25
    Military/High-Rel:N
    V(BR)DSS (V):250
    V(BR)GSS (V):20
    I(D) Max. (A):14#
    I(DM) Max. (A) Pulsed I(D):8.8
    @Temp (øC):100
    IDM Max (@25øC Amb):56#
    Absolute Max. Power Diss. (W):125#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:1
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):250
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):280m
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):8
    g(fs) Min. (S) Trans. conduct.:6.7
    g(fs) Max; (S) Trans. conduct;:10Â
    @I(D) (A) (Test Condition):10
    C(iss) Max. (F):1.3nÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:24n
    t(r) Max. (s) Rise time:100n
    t(d)off Max. (s) Off time:80n
    t(f) Max. (s) Fall time.:74n
    Package Style:TO-220AB
    Mounting Style:T
    ICEV
    Add to cart Details
  • Placeholder

    IRF710

    $3.02
    Quantity: 2385




































    Maximum Operating Temp (øC):150õ
    @V(DS) (V) (Test Condition):400
    td(on) Max (s) On time delay:12n
    @V(GS) (V) (Test Condition):20
    @Temp (øC) (Test Condition):25
    @V(DS) (V) (Test Condition):25
    Military/High-Rel:N
    t(f) Max. (s) Fall time.:17n
    Thermal Resistance Junc-Case:3.5
    Thermal Resistance Junc-Amb.:80
    V(BR)DSS (V):400
    g(fs) Max; (S) Trans. conduct;:1.5Â
    Absolute Max. Power Diss. (W):36#
    g(fs) Min. (S) Trans. conduct.:1.0
    V(BR)GSS (V):20
    r(DS)on Max. (Ohms):3.6
    Minimum Operating Temp (øC):-55õ
    C(iss) Max. (F):135pÂ
    V(GS)th Max. (V):4
    @V(GS) (V) (Test Condition):10
    @Freq. (Hz) (Test Condition):1M
    V(GS)th (V) (Min):2
    I(D) Max. (A):2.0#
    Package Style:TO-220AB
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    Mounting Style:T
    t(d)off Max. (s) Off time:32n
    I(GSS) Max. (A):500n
    @I(D) (A) (Test Condition):1.1
    t(r) Max. (s) Rise time:15n
    I(DM) Max. (A) Pulsed I(D):1.2
    @I(D) (A) (Test Condition):1.1
    @Temp (øC):100
    IDM Max (@25øC Amb):5#
    @V(DS) (V) (Test Condition):50
    Add to cart Details
  • Placeholder

    IRF712

    $2.39
    Quantity: 115
    Military/High-Rel:N
    V(BR)DSS (V):400
    V(BR)GSS (V):20
    I(D) Max. (A):1.7#
    I(DM) Max. (A) Pulsed I(D):1.1#
    @Temp (øC):100
    IDM Max (@25øC Amb):4.3#
    Absolute Max. Power Diss. (W):36#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:3.5
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):400
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):5.0ò
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):1.1
    g(fs) Min. (S) Trans. conduct.:1.0
    g(fs) Max; (S) Trans. conduct;:1.5Â
    @V(DS) (V) (Test Condition):50
    @I(D) (A) (Test Condition):1.1
    C(iss) Max. (F):135pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:12n
    t(r) Max. (s) Rise time:15n
    t(d)off Max. (s) Off time:32n
    t(f) Max. (s) Fall time.:17n
    Package Style:TO-220AB
    Mounting Style:T
    IB‡
    Add to cart Details
  • Placeholder

    IRF720

    $4.93
    Quantity: 32
    Military/High-Rel:N
    V(BR)DSS (V):400
    V(BR)GSS (V):20
    I(D) Max. (A):3.3#
    I(DM) Max. (A) Pulsed I(D):2.1
    @Temp (øC):100
    IDM Max (@25øC Amb):13
    Absolute Max. Power Diss. (W):50#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:2.5
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4
    V(GS)th (V) (Min):2
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):400
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):1.8
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):1.8
    g(fs) Min. (S) Trans. conduct.:1.8
    g(fs) Max; (S) Trans. conduct;:2.7Â
    @V(DS) (V) (Test Condition):50
    @I(D) (A) (Test Condition):1.8
    C(iss) Max. (F):360pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1M
    td(on) Max (s) On time delay:15n
    t(r) Max. (s) Rise time:21n
    t(d)off Max. (s) Off time:45n
    t(f) Max. (s) Fall time.:20n
    Package Style:TO-220var
    Mounting Style:T
    TypicalÀ
    Add to cart Details

  • IRF723

    $1.49
    Quantity: 4
    Military/High-Rel:N
    V(BR)DSS (V):350
    V(BR)GSS (V):20
    I(D) Max. (A):2.8#
    I(DM) Max. (A) Pulsed I(D):1.8
    @Temp (øC):100
    IDM Max (@25øC Amb):11#
    Absolute Max. Power Diss. (W):50#
    Minimum Operating Temp (øC):-55õ
    Maximum Operating Temp (øC):150õ
    Thermal Resistance Junc-Case:2.5
    Thermal Resistance Junc-Amb.:80
    V(GS)th Max. (V):4.0
    V(GS)th (V) (Min):2.0
    @I(D) (A) (Test Condition):250u
    I(DSS) Max. (A):250u
    @V(DS) (V) (Test Condition):350
    @Temp (øC) (Test Condition):25
    I(GSS) Max. (A):500n
    @V(GS) (V) (Test Condition):20
    r(DS)on Max. (Ohms):2.5
    @V(GS) (V) (Test Condition):10
    @I(D) (A) (Test Condition):1.8
    g(fs) Min. (S) Trans. conduct.:1.8
    g(fs) Max; (S) Trans. conduct;:2.7Â
    @V(DS) (V) (Test Condition):50
    @I(D) (A) (Test Condition):1.8
    C(iss) Max. (F):360pÂ
    @V(DS) (V) (Test Condition):25
    @Freq. (Hz) (Test Condition):1.0M
    td(on) Max (s) On time delay:15n
    t(r) Max. (s) Rise time:21n
    t(d)off Max. (s) Off time:45n
    t(f) Max. (s) Fall time.:20n
    Package Style:TO-220AB
    Mounting Style:T
    It(rms)²
    Add to cart Details
PRODUCTS
QUALITY
ABOUT US

SUBSCRIBE TO OUR NEWSLETTER

Get the latest news, articles in  your inbox weekly.

Go to Top
